Crackmes : Hekliet’s keygenme (Medium)

• Author : hekliet
• Difficulty: 3.0 Rate!
• Quality: 4.0 Rate!
• Download : https://crackmes.one/crackme/69723bb7d735cd51e7a1aa78

Key takeaways

• Knowledge : Key Generator, Cycle
• Technique : Static Analysis, Script Python, Encryption
• Programming language : C/C++.

Case Summary

The program requires 2 parameters which are name and Key, then will get name to create a and b while key will supply radius r1,r2, then if the function is_key_valid() return true, this problem is finished.

Analyst

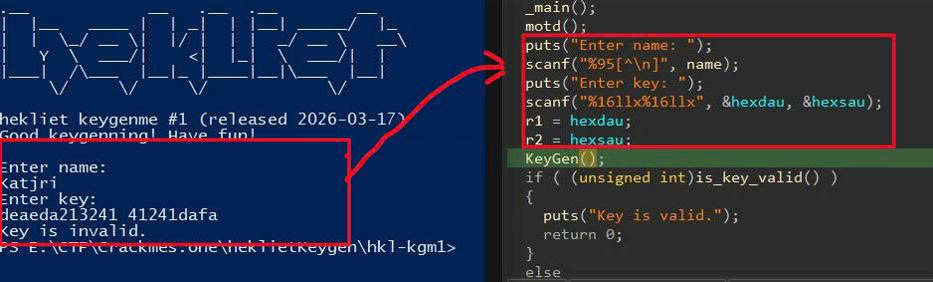

Firstly, I will check in the main() function and try to execute it. There are 2 requirements that I have to type in.

Following the code, I paid attention that the binary will read 2 global variables which are name and 32 bytes key in hexdecimal format, then call KeyGen() function with name variable.

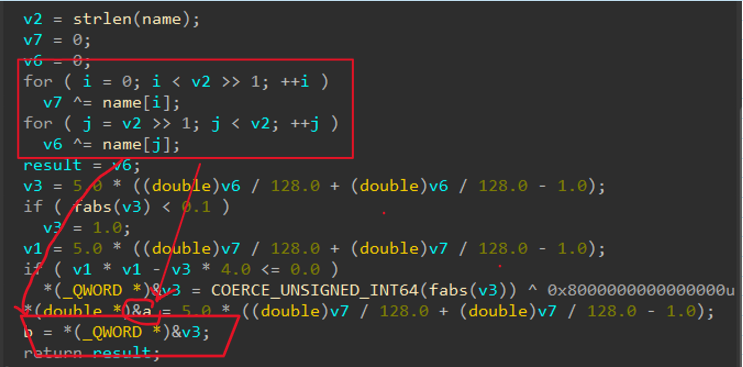

In KeyGen() function, it will return to 2 global variables a and b, they are both center in circle.

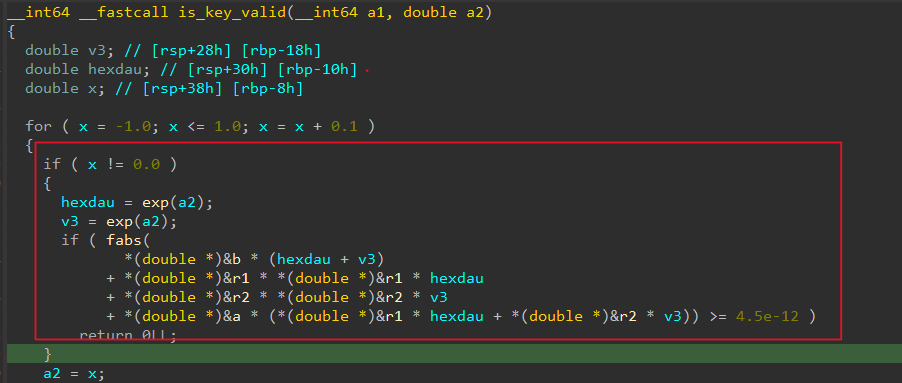

Finally, we must address this fomular: $$F = H(r_1^2 + a \cdot r_1 + b) + V(r_2^2 + a \cdot r_2 + b)$$

While :

• r1 is 16 bytes first in key input and last is r2
• a and b are both global variables.

Finally, we just simply find 2 two a and b variables through KeyGen().

This is script python IDA to get these variables

import idc

import struct

import math



def get_double(addr):

return struct.unpack('d', struct.pack('Q', idc.get_qword(addr)))[0]



def double_to_hex(f):

return hex(struct.unpack('<Q', struct.pack('<d', f))[0]).replace('L', '')



# 1. Chạy qua KeyGen trước (đặt breakpoint ở call is_key_valid)

# 2. Lấy giá trị a và b sau khi KeyGen đã tính xong

addr_a = idc.get_name_ea_simple("a")

addr_b = idc.get_name_ea_simple("b")



if addr_a != idc.BADADDR and addr_b != idc.BADADDR:

A = get_double(addr_a)

B = get_double(addr_b)

print(f"[+] Da lay duoc: A = {A}, B = {B}")

# Giai phuong trinh: R^2 + AR + B = 0

delta = A*A - 4*B

if delta < 0:

print("[-] Delta am, phương trình phức tạp hơn rồi...")

else:

r_sol = (-A + math.sqrt(delta)) / 2.0

print("-" * 30)

print("KẾT QUẢ KEY CẦN NHẬP (DẠNG HEX):")

print(f"v5 (Key 1): {double_to_hex(r_sol)[2:]}")

print(f"v4 (Key 2): {double_to_hex(r_sol)[2:]}")

print("-" * 30)

print("Lưu ý: Nhập 2 chuỗi hex trên cách nhau bởi dấu cách.")

else:

print("[-] Khong tim thay bien a hoac b.")

<<<<<<< HEAD

P/s : we just figure out only 16 bytes-first and repeat it in 16 bytes-last, thus leading to solve this issue :))) ======= P/s : we just figure out only one 16 bytes-first and repeat it in 16 bytes-last, thus leading to solve this issue :)))
